Build Your Own Search Engine: Databases for AI
By Xavier Collantes
8/14/2025
After building production vector search systems with embeddings,
I have discovered that the choice between Qdrant, Pinecone, and AWS OpenSearch
Service fundamentally impacts your application's architecture, budget, and
scalability. This technical deep-dive compares these three leading solutions
across performance, pricing, and production readiness.
What Is Vector Storage?
Vector Databases, also referred to as Vector Stores, are like conventional SQL
and NoSQL databases where they store large amounts of text data. The biggest
difference is Vector Stores have extra steps to hash the incoming text and then
assign similarity scores based on the topic in the text.
This way, querying the vector database can get results based off of topicality
and similarity.
Why is this useful?
Finding related pieces of data given an input text string is the basic function
of a search engine. The best example is a website called
www.google.com.
On a basic level, any search engine works this way: a user can give a text
string and get a collection of "documents" based on how closely the text string
is related on the input. But before the user can make any queries, a corpus of
documents have to be collected, embedded, and ranked.
Google's super secret algorithm: PageRank
LLM Connection

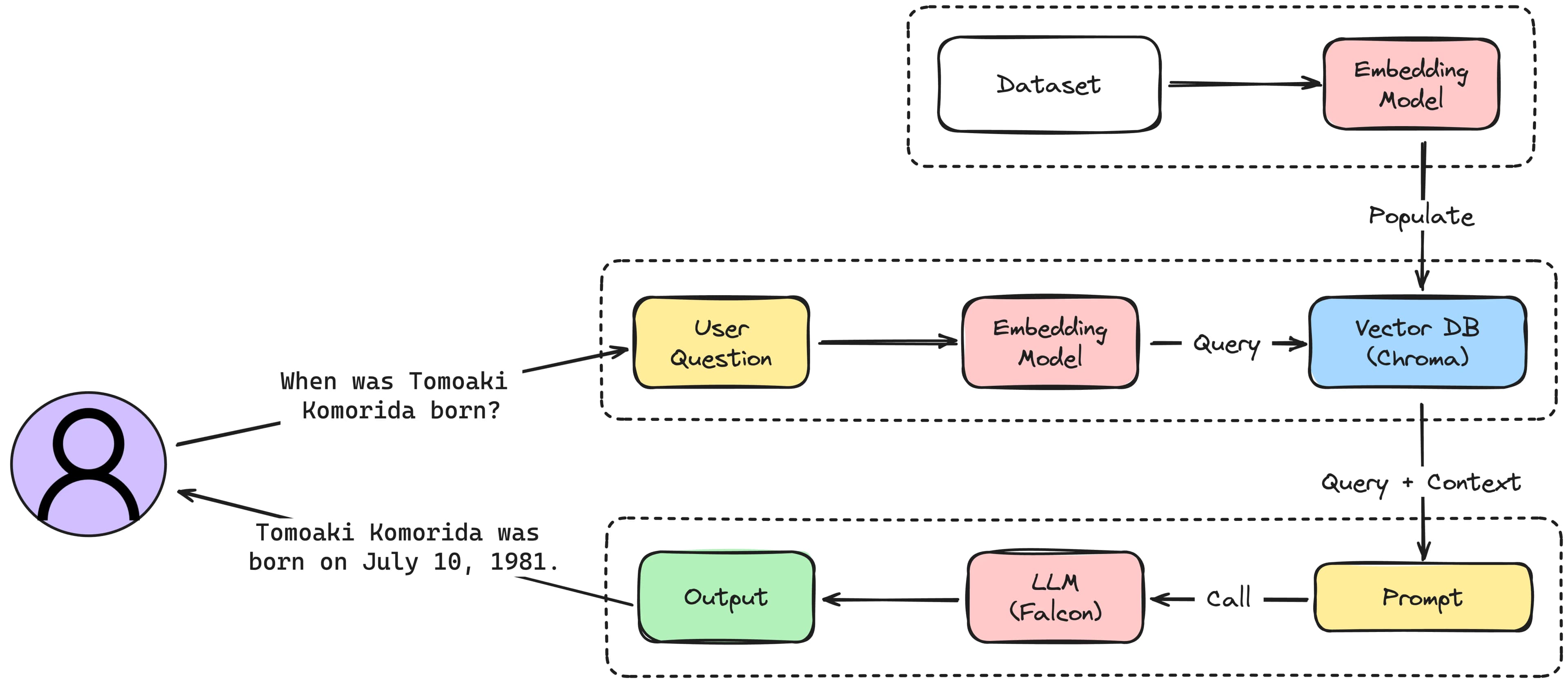

Vector Stores have been integral in being the database for RAG
model implementations. This is because LLMs are
cost prohibitive to train from the ground up. So to have a dynamic data
reference, the RAG model leverages vector databases for searching for relevant
data in a corpus.
Think of it as a student taking a test, but has access to the textbook along
with the knowledge he or she already knows.
Embeddings
Embedding models translate human-readable text to a hash which can be
scored to indicate relationships. There are many types of encoding models, which
vary in speed and ability to interpret topics.
For example, "dog" and "cat" may be given a score of 0.7 because they are
both animals, both are common pets, but are different species as per the
training data.
"Cat" and "cow" may be given a score of 0.2 because though they are both
animals, they are less seen together in the training data.
Some of these algorithms for measuring similarity include Co-sine
Similarity
and Euclidean
Distance.
Technically embeddings and models are interchangeable as long as the outputs
are the size the model expects.
- Embedding outputs match size (384, 1024, etc.)
- Do not change your embedding model suddenly. The embeddings outputs are unique to the model so switching models without re-embedding the vector database will not work.
The Vector Store Choices
Vector storage solutions exist on a spectrum from simple in-memory arrays to
enterprise-grade distributed databases.
Vector Databases
Embeddings turn regular text into coordinates in high-dimensional space where
similar concepts end up close together.
There are many choices for vector databases:
- Simple setup
- Local storage in the form of a SQLite file
- Cloud store only with a local emulator version
- Free tier then you pay for the storage
- Pricing model is based off monthly minimum usage
- Simple setup
- Local vector store
- Cloud vector store or locally hosted with Docker
- Cloud managed service version has 1GB free
- Cloud managed service has straight-forward pricing by the hour
Generally speaking, all these services offer about the same features. The
biggest differences are the adjacent features and ability how to deploy. For
example, Qdrant can be run on Docker easily while Pinecone has an emulator for
local development.
For more complex use cases, you can use a cloud vector store like Pinecone or if
you have a Docker Compose or Kubernetes setup, you can use Qdrant.
Local File-Based Solutions: Quick For Experimentation
When To Use: Medium datasets (100k-1M vectors), single-machine deployment,
cost-sensitive projects
Pros:
- Quick setup
- Handles millions of vectors efficiently
- Free and open source
- Persistent storage
Cons:
- Single-machine limitation
- No built-in concurrency control
- Limited query flexibility (no complex filtering for post-query)
In this example, we will use FAISS to build a vector store. FAISS was developed
and open-sourced by Facebook in 2017.
🐍
Python31import pickle
2import faiss
3import numpy as np
4from pathlib import Path
5
6class FAISSVectorStore:
7 def __init__(self, dimension: int, index_path: str = "vector_index.faiss"):
8 self.dimension = dimension
9 self.index_path = Path(index_path)
10 self.metadata_path = Path(str(index_path).replace('.faiss', '_metadata.pkl'))
11
12 # Initialize FAISS index (HNSW for good speed/accuracy balance)
13 self.index = faiss.IndexHNSWFlat(dimension, 32)
14 self.metadata = []
15
16 # Load existing index if available
17 if self.index_path.exists():
18 self.load_index()
19
20 def add_batch(self, vectors: np.ndarray, metadata_list: List[dict]):
21 """Add multiple vectors efficiently."""
22 # Ensure vectors are float32 (FAISS requirement)
23 vectors = vectors.astype(np.float32)
24
25 # Add to FAISS index
26 self.index.add(vectors)
27
28 # Store metadata
29 self.metadata.extend(metadata_list)
30
31 # Save to disk
32 self.save_index()
33
34 def search(self, query_vector: np.ndarray, top_k: int = 5) -> List[Tuple[float, dict]]:
35 """Search for similar vectors."""
36 query_vector = query_vector.astype(np.float32).reshape(1, -1)
37
38 # FAISS search returns distances and indices
39 distances, indices = self.index.search(query_vector, top_k)
40
41 results = []
42 for distance, idx in zip(distances[0], indices[0]):
43 if idx != -1: # Valid result
44 # Convert distance to similarity (for cosine: similarity = 1 - distance)
45 similarity = 1 - distance
46 results.append((similarity, self.metadata[idx]))
47
48 return results
49
50 def save_index(self):
51 """Persist index and metadata to disk."""
52 faiss.write_index(self.index, str(self.index_path))
53 with open(self.metadata_path, 'wb') as f:
54 pickle.dump(self.metadata, f)
55
56 def load_index(self):
57 """Load index and metadata from disk."""
58 self.index = faiss.read_index(str(self.index_path))
59 with open(self.metadata_path, 'rb') as f:
60 self.metadata = pickle.load(f)
61
62# Usage example with realistic data
63from sentence_transformers import SentenceTransformer
64
65# Initialize embedding model and vector store
66model = SentenceTransformer('all-MiniLM-L6-v2')
67store = FAISSVectorStore(dimension=384) # MiniLM embedding dimension
68
69# Sample documents
70documents = [
71 "Python is a powerful programming language",
72 "Machine learning enables computers to learn",
73 "Vector databases store high-dimensional data",
74 "FAISS provides efficient similarity search",
75 "Natural language processing analyzes text"
76]
77
78# Generate embeddings and store
79embeddings = model.encode(documents)
80metadata = [{"text": doc, "id": i} for i, doc in enumerate(documents)]
81
82store.add_batch(embeddings, metadata)
83
84# Search example
85query = "programming languages and coding"
86query_embedding = model.encode([query])
87results = store.search(query_embedding[0], top_k=3)
88
89print(f"Query: {query}")
90for similarity, meta in results:
91 print(f" Similarity: {similarity:.3f} - {meta['text']}")
92snippet hosted withby Xavier
Specialized Vector Databases: Production-Ready
When To Use: Production applications, multi-user systems, complex filtering
needs, distributed deployment
Pros:
- Production-ready features (backups, monitoring, clustering)
- Advanced filtering and query capabilities
- Horizontal scaling support
- Built-in security and access controls
Cons:
- More complex setup and operations
- Higher resource requirements
- Steeper learning curve
🐍
Python31from qdrant_client import QdrantClient
2from qdrant_client.models import Distance, VectorParams, PointStruct, Filter, FieldCondition, MatchValue
3
4class ProductionVectorStore:
5 def __init__(self, host: str = "localhost", port: int = 6333):
6 self.client: QdrantClient = QdrantClient(host=host, port=port)
7 self.collection_name = "documents"
8
9 # Create collection with optimized settings
10 try:
11 self.client.create_collection(
12 collection_name=self.collection_name,
13 vectors_config=VectorParams(
14 size=384, # Embedding dimension
15 distance=Distance.COSINE
16 ),
17 # Performance optimizations
18 optimizers_config={
19 "default_segment_number": 2,
20 "max_segment_size": 200000,
21 "memmap_threshold": 50000,
22 },
23 hnsw_config={
24 "m": 16,
25 "ef_construct": 100,
26 }
27 )
28 except Exception:
29 # Collection already exists
30 pass
31
32 def add_documents(self, documents: List[dict]):
33 """Add documents with embeddings and rich metadata."""
34 points = []
35
36 for i, doc in enumerate(documents):
37 point = PointStruct(
38 id=doc.get("id", i),
39 vector=doc["embedding"],
40 payload={
41 "text": doc["text"],
42 "category": doc.get("category", "general"),
43 "author": doc.get("author", "unknown"),
44 "timestamp": doc.get("timestamp"),
45 "tags": doc.get("tags", [])
46 }
47 )
48 points.append(point)
49
50 # Batch insert with wait for consistency
51 self.client.upsert(
52 collection_name=self.collection_name,
53 points=points,
54 wait=True
55 )
56
57 def search_with_filters(self,
58 query_vector: List[float],
59 category: str = None,
60 author: str = None,
61 tags: List[str] = None,
62 top_k: int = 5) -> List[dict]:
63 """Advanced search with multiple filter conditions."""
64
65 # Build complex filter
66 filter_conditions = []
67
68 if category:
69 filter_conditions.append(
70 FieldCondition(key="category", match=MatchValue(value=category))
71 )
72
73 if author:
74 filter_conditions.append(
75 FieldCondition(key="author", match=MatchValue(value=author))
76 )
77
78 if tags:
79 from qdrant_client.models import MatchAny
80 filter_conditions.append(
81 FieldCondition(key="tags", match=MatchAny(any=tags))
82 )
83
84 # Create filter object
85 search_filter = None
86 if filter_conditions:
87 search_filter = Filter(must=filter_conditions)
88
89 # Perform search
90 results = self.client.search(
91 collection_name=self.collection_name,
92 query_vector=query_vector,
93 query_filter=search_filter,
94 limit=top_k,
95 with_payload=True
96 )
97
98 return [
99 {
100 "id": result.id,
101 "score": result.score,
102 "text": result.payload.get("text"),
103 "category": result.payload.get("category"),
104 "author": result.payload.get("author"),
105 "tags": result.payload.get("tags", [])
106 }
107 for result in results
108 ]
109
110# Usage example
111store = ProductionVectorStore()
112
113# Sample documents with rich metadata
114documents = [
115 {
116 "id": 1,
117 "text": "Introduction to Python programming",
118 "embedding": model.encode("Introduction to Python programming").tolist(),
119 "category": "programming",
120 "author": "jane_doe",
121 "tags": ["python", "tutorial", "beginner"]
122 },
123 {
124 "id": 2,
125 "text": "Advanced machine learning techniques",
126 "embedding": model.encode("Advanced machine learning techniques").tolist(),
127 "category": "ai",
128 "author": "john_smith",
129 "tags": ["ml", "advanced", "algorithms"]
130 },
131 {
132 "id": 3,
133 "text": "Database design principles",
134 "embedding": model.encode("Database design principles").tolist(),
135 "category": "database",
136 "author": "jane_doe",
137 "tags": ["database", "design", "sql"]
138 }
139]
140
141store.add_documents(documents)
142
143# Advanced search examples
144query_embedding = model.encode("python coding tutorial").tolist()
145
146# Search within programming category
147programming_results = store.search_with_filters(
148 query_vector=query_embedding,
149 category="programming",
150 top_k=5
151)
152
153# Search for documents by specific author
154jane_results = store.search_with_filters(
155 query_vector=query_embedding,
156 author="jane_doe",
157 top_k=5
158)
159
160# Search for documents with specific tags
161tutorial_results = store.search_with_filters(
162 query_vector=query_embedding,
163 tags=["tutorial", "beginner"],
164 top_k=5
165)
166
167print("Programming category results:")
168for result in programming_results:
169 print(f" Score: {result['score']:.3f} - {result['text']}")
170snippet hosted withby Xavier
Conclusion
Vector stores are essential infrastructure for modern AI applications. The key
is matching your choice to your specific requirements:
- Start simple with in-memory solutions for prototyping
- Scale pragmatically to FAISS or equivalent for medium-sized datasets
- Go production-ready with specialized vector databases for enterprise applications
The vector storage landscape will continue evolving rapidly, but understanding
these fundamentals will help you make informed decisions regardless of which
specific technologies emerge.
Further Reading
Related Articles
Related by topics:
ai
llm
rag
ml
